AW90 winder suitable for: 24K or above carbon fiber, Towpreg



This model is specially designed for extra brittle fiber, its special design of two-axis rewinding spindle can achieve no-damage rewinding.

AW10 of winders suitable for: Aramid fiber, PBO fiber, UHMWPE fiber, PIfiber, high performance ceramic fiber.

The winder is designed for the high-speedy rewinding of high performance fiber with the highest rewinding speed of 800m/min. The structure of winder is neoteric and it can reduce the friction for fiber to an extreme and avoid damaging the quality of fiber in the process of winding; the machine is more reliable with less maintenance.

This model suitable for: the rewinding of 1-24K carbon fiber

This model winder suitable for: the winding of 1-24K carbon fiber The winder is designed for the rewinding of carbon fiber on carbonization production line with reasonable structure of yarn guide which can ensure the smooth transition of yarn without damage. Auto change-over technology based on fixed length mode and fixed diameter mode with early change-over warning function. Simple and visual operation.

It is suitable for high-precision controlled tension unwinding of aramid yarn, glass fiber, carbon fiber and other spindles. It is also suitable for large and small tension and low-speed and high-speed unwinding requirements.


Operation process
The yarn fray is unwinded by the godet wheel, rotated and cut the yarn to release the yarn, and then enters the tension control system, and then passes through the aluminum alloy godet roller for the guide wire collection, and then enters the subsequent equipment. Unwinding is driven by a motor, controlled by a vector controller, and a sensor senses the tension to form a closed-loop control system.

Applied for Carbon fiber, Aramid fiber, Hi-PE fiber, basalt fiber, glass fiber, tire cord and other special fiber… no motor, tangential unwinding;

Structure and composition:

It consists of four parts: frame body, spindle, tension control and thread guide; the spindles are arranged in a double-sided structure and Arrange by rectangle..

Specific application fields: For producing carbon fiber, glass fiber and aramid fiber prepreg with thermoplastic resin. Products can be applied in aerospace and airplane, commercial prepreg, sports, wind blades, automobile , marine etc.


Pull the continuous fiber from unwinding creel, through the tension adjustment devices , and through the pre-heating equipment and fiber spreading device and got the pre-heated continuous fiber tows, screw extruder will melt the resin onto the glass fiber and enter into the impregnation mould, and through the fixing station by calender rollers, through the air cooling framework , edge trimming and finally rewound by the winders.

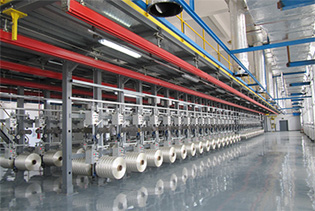

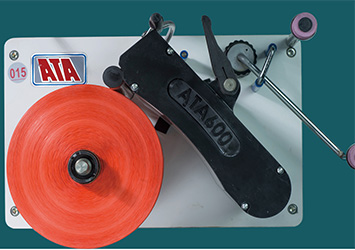

ATA tension balanced winder ATA600DH is adapted for the winding of PP & PE flat yarns. It produces high quality flat yarns which is also the basic guarantee to produce spindles in bigger diameter.

Technique features

※ According to yarns in different specification, users can set up different winding parameters to make spindles in perfect shaping, and can be applied widely.

※ Adopt continued winding technique to keep balance of inner and outer tension.  Decrease yarns breakage ratio and reduce woven cloth\s deviation.

※ Spindle\s diameter can reach 180mm,  It can reduce the frequency to changeover spindle and lower work intensity. What’s more, it can also lengthen circular loom’s using time.

※  Simple structure, less easy-going spare parts; smart & advanced

The Double Station Winder aims to achieve high-quality, high-tech winding, and is suitable for uninterrupted production and winding of PP or HDPE yarn.

Technical features:

l Compared with ordinary single-station winders, the labor intensity is reduced by 40%.

l The product is independently researched, it is reliable and durable, and the success rate of changeover is over 99%.

l According to different specifications of yarn, it can be set independently, and different winding parameters can be selected. The spindle is perfectly shaped and has a wide range of applications.

l Can independently select the "Diameter mode" or "Length mode" as the conditions for changeover, It can ensure the consistency of all spindles, which is conducive to the subsequent production process.

l "Continuous winding technology" is adopted to ensure the same tension between the inner and outer spindles, reduce the yarn breakage rate of the circular loom, and reduce the deviation of the fabric width.

ATA600G winder suitable for: PP tape, Monofilament, Grass fiber, Glass fiber, Coating&dipping fiber, Ceramic fiber, TPFE fiber, PPS fiber, High performance plastic fiber.

The winder is designed for speciality fiber, its special function of auto change-over can ensure to save cost, reduce labor intensity and improve production efficiency for the users.

ATA600DG winder suitable for: PP tape, Monofilament, Grass fiber, Glass fiber, Coating&dipping fiber, Ceramic fiber, TPFE fiber, PPS fiber, High performance plastic fiber.

The winder, designed for speciality fiber, is the preferred product for upgrading and updating of speciality feiber enterprises. It can produce the big spindle with max diameter of 300mm which keeps the yarn tension inside and outside consistent, to ensure the highest efficiency and quality of the next process.

AW90 winder suitable for: 24K or above carbon fiber, Towpreg



This model is specially designed for extra brittle fiber, its special design of two-axis rewinding spindle can achieve no-damage rewinding.

AW10 of winders suitable for: Aramid fiber, PBO fiber, UHMWPE fiber, PIfiber, high performance ceramic fiber.

The winder is designed for the high-speedy rewinding of high performance fiber with the highest rewinding speed of 800m/min. The structure of winder is neoteric and it can reduce the friction for fiber to an extreme and avoid damaging the quality of fiber in the process of winding; the machine is more reliable with less maintenance.

This model suitable for: the rewinding of 1-24K carbon fiber

It is suitable for high-precision controlled tension unwinding of aramid yarn, glass fiber, carbon fiber and other spindles. It is also suitable for large and small tension and low-speed and high-speed unwinding requirements.


Operation process
The yarn fray is unwinded by the godet wheel, rotated and cut the yarn to release the yarn, and then enters the tension control system, and then passes through the aluminum alloy godet roller for the guide wire collection, and then enters the subsequent equipment. Unwinding is driven by a motor, controlled by a vector controller, and a sensor senses the tension to form a closed-loop control system.

Applied for Carbon fiber, Aramid fiber, Hi-PE fiber, basalt fiber, glass fiber, tire cord and other special fiber… no motor, tangential unwinding;

Structure and composition:

It consists of four parts: frame body, spindle, tension control and thread guide; the spindles are arranged in a double-sided structure and Arrange by rectangle..

Multi-Functional Fiber Sizing Line is used for the desizing and sizing for carbon fiber, glass fiber, aramid fiber, basalt fiber , carbon nanotube fibers and other special fibers. It is the ideal experiment & research equipment for enterprise unit, the scientific research institute, the university research organization.

Specific application fields: For producing carbon fiber, glass fiber and aramid fiber prepreg with thermoplastic resin. Products can be applied in aerospace and airplane, commercial prepreg, sports, wind blades, automobile , marine etc.


Pull the continuous fiber from unwinding creel, through the tension adjustment devices , and through the pre-heating equipment and fiber spreading device and got the pre-heated continuous fiber tows, screw extruder will melt the resin onto the glass fiber and enter into the impregnation mould, and through the fixing station by calender rollers, through the air cooling framework , edge trimming and finally rewound by the winders.

Satellite photo-level printing technology, double-sided 12-color one-time Process production, suitable for high-grade woven bags printing.

This model can print up to 12 colors 6+6, please specify in advance if you have other requirements.


• Single-Pass, two side printing
• High Precision Color Positioning ,Direct Printing for Color (image) Printing
• No-stop Fabric Roll Switch-over
• Easy to change Printing Roller for differ size printing
• Edge Position Control (EPC) for Winding and Unwinding
• Auto Recirculation/Mixing System for Paint Mixture
• Center Oven for complete drying
• Main Motor Driving with Inverter Control, sync printing
• PLC Operation Control, Digital Display for Operation Monitor and Operation Setting

This roll to roll printing machine is suitable for large-scale chemical, fertilizer, building materials, cement and other plastic woven bag making enterprises.



The machine adds a leveling mechanism with reference to foreign technology. When the host is stopped, the ink transfer mechanism continues to work, and the waiter can be restarted to reduce the generation of printing waste

Note: This series of models are available in 4, 6, 8, 10, and 12 colors. This description uses 6 colors as an example.

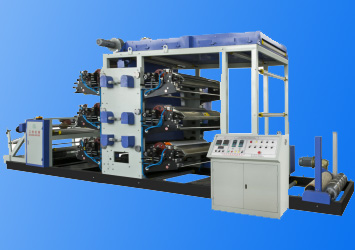

The unit adopts indirect automatic flexographic printing technology to realize the length and length of the woven bag without replacing the drum and gear. At the same time, the electric eye tracking technology is used, and the double-sided printing is completed in one process.

The maximum color of this series of printers is 9 colors, with 5 colors on the top and 4 colors on the bottom. If you have special needs, please explain in advance.

• Printed woven bags of different sizes do not need to change rollers, gears
• Double-sided printing in one process
• Overprinting accuracy without error
• Non-stop change
• EPC automatic edge correction
• Automatic cycle ink supply
• Double-sided infrared drying, automatic shutdown
• Servo motor drive, frequency control
• Color standard electric eye tracking single-sided color film bag, printing on the second side
• PLC centralized control, touch screen data display, setting, recording

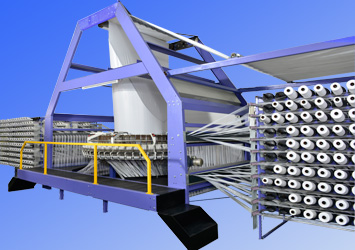

The circular loom is aimed at achieving high efficiency and high-tech weaving. It is suitable for the continuous production and weaving of PP or HDPE yarns. It is specially used for FIBC bags, geotextile and tarpaulins.

The circular loom aims to achieve high-efficiency and high-tech knitting. It is suitable for continuous production and knitting of PP or HDPE yarns, and is specially used for 3m tarpaulin products.

The circular loom aims at achieving high-efficiency and high-tech weaving, and meets the uninterrupted weaving of PP or HDPE yarns. It is suitable for the production of standard bag cloth such as chemical bags, cement bags, and feed bags.

AEC1600 uses polyethylene or polypropylene as raw material for production, and is widely used in product packaging, storage and transportation in industries such as fertilizer, cement, metallurgy and minerals.

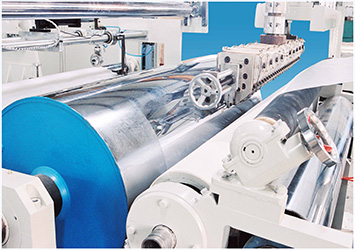

This machine adopts single extruder, die head and lamination section to drive with stepless speed regulation, single side of woven fabric coated with plastic film, or kraft paper (BOPP color film) and plastic woven fabric composited to make two in one, three in one composited material.

The control system of this machine is equipped with Siemens PLC &touch screen and automatic tension controller, which can make the whole amchine run synchronously and track automatically with the function of joint control.

AEC900B uses polyethylene or polypropylene as raw material for production, and is widely used in product packaging, storage and transportation in industries such as fertilizer, cement, metallurgy and minerals.
